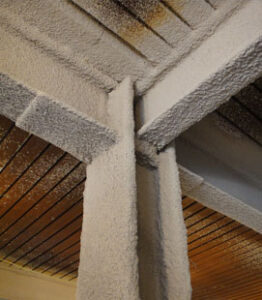

Cementitious Fireproofing

Cementitious fireproofing is a spray-applied material designed to protect structural elements such as steel, concrete, and wood from fire and high temperatures. It forms a thick insulating layer that slows down the transfer of heat during a fire, increasing the time it takes for structural components to reach critical failure temperatures. This added fire resistance helps ensure buildings meet safety codes and standards.

Key Features of Cementitious Fireproofing:

  1. Composition: It is typically made of a blend of cement-based materials, lightweight aggregates, and chemical additives that enhance adhesion and durability.
  2. Application: Applied using specialized spray equipment, it adheres directly to the substrate. In some cases, manual application is used for touch-ups or detailed areas.
  3. Thickness: The required thickness varies depending on the level of fire resistance needed, typically ranging from ½ inch to several inches.
  4. Fire Resistance Ratings: Cementitious fireproofing can provide fire resistance ratings from one to several hours, depending on the material and application.

Types of Cementitious Fireproofing:

  • Standard Density: Often used in less demanding environments, offering adequate fire protection at a lower cost.
  • Medium/High Density: Used in areas exposed to high humidity, mechanical impacts, or harsh conditions due to its greater durability and resistance.


Applications:

  • Skyscrapers and commercial buildings.
  • Industrial facilities and petrochemical plants.
  • Warehouses and public infrastructure.


Benefits:

  • Excellent fire resistance for structural integrity.
  • Durable and long-lasting protection.
  • Cost-effective solution for large-scale applications.

Intumescent fireproofing is a type of fire-resistant coating that expands and forms a protective char layer when exposed to high temperatures. This process slows the spread of fire and insulates structural components like steel and wood, helping to maintain their integrity during a fire. Unlike cementitious fireproofing, intumescent coatings are thinner and can provide a more aesthetically pleasing finish, making them ideal for projects where visual appearance is important.

How Intumescent Fireproofing Works:

When exposed to heat, the coating undergoes a chemical reaction, causing it to expand significantly (up to 50 times its original thickness). This expanded layer acts as a thermal barrier, reducing heat transfer to the structural element and prolonging its ability to withstand fire.

Key Features of Intumescent Fireproofing:

  1. Composition: Made of epoxy-based or water-based materials mixed with flame-retardant additives.
  2. Aesthetic Finish: Unlike thicker cementitious coatings, intumescent fireproofing can be applied in thin layers, allowing for a smooth, paint-like finish.
  3. Application: Typically sprayed or brushed onto surfaces, with multiple layers applied to achieve the desired fire rating.


Fire Resistance Ratings:

  • Intumescent coatings provide fire resistance ratings of up to 4 hours, depending on the type and thickness of the application.
  • Commonly used in structural steel to prevent it from reaching its critical temperature during a fire.

Applications:

  • High-rise buildings and commercial structures.
  • Airports, hospitals, and public facilities where aesthetics are important.
  • Industrial settings, including petrochemical plants and refineries.


Benefits of Intumescent Fireproofing:

  • Aesthetic Appeal: Maintains a sleek finish suitable for visible structural components.
  • Lightweight: Adds minimal weight compared to cementitious fireproofing.
  • Versatility: Can be used on steel, wood, and other materials.
  • Durability: Resistant to cracking and mechanical damage when properly applied.


Intumescent vs. Cementitious Fireproofing:

  • Thickness: Intumescent coatings are thinner and more visually appealing.
  • Durability: Cementitious coatings are often more robust in harsh environments.
  • Cost: Intumescent coatings are typically more expensive but provide aesthetic and lightweight advantages.
